Shingle and Flatlock Metal Cladding

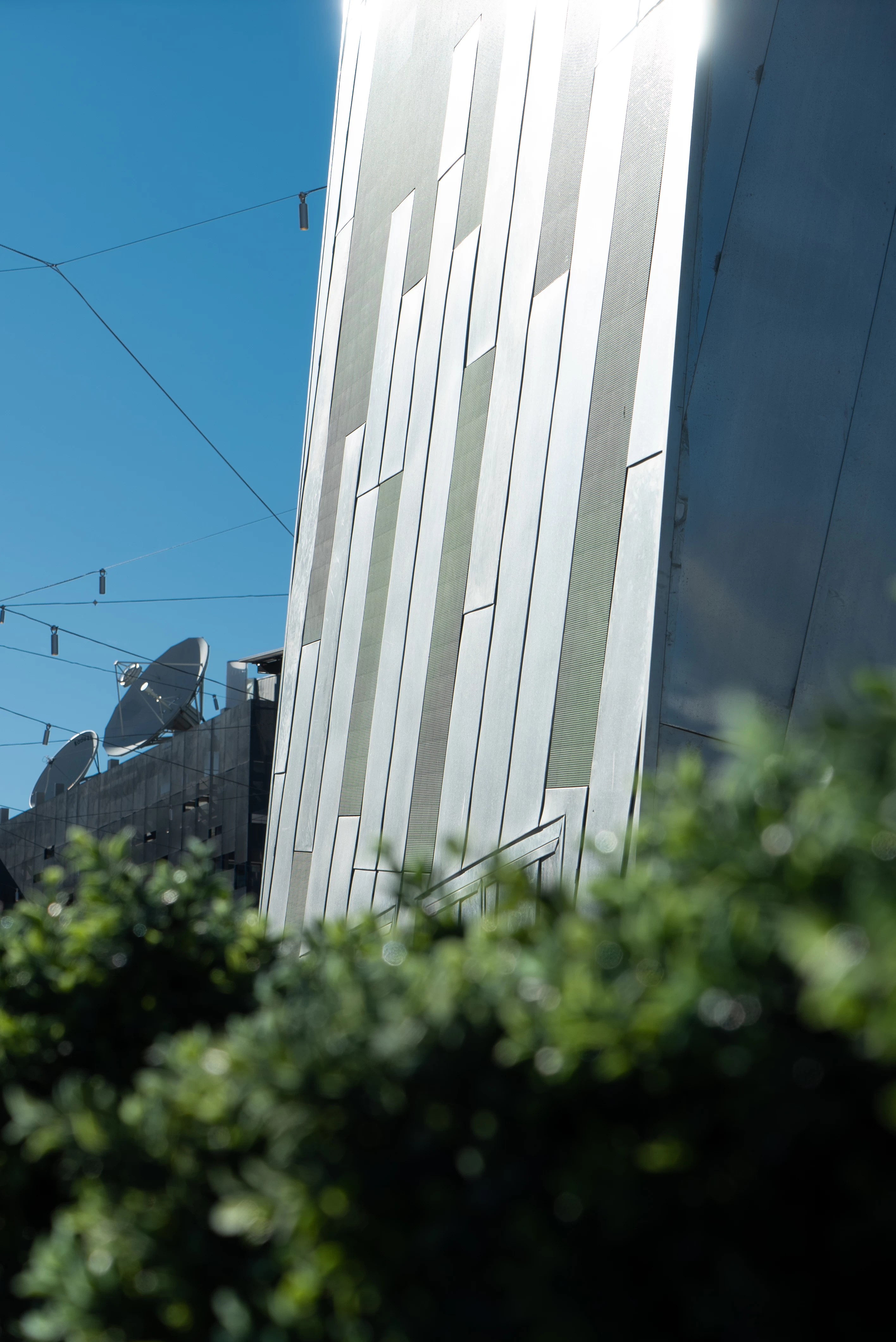

Shingle and Flatlock Metal Cladding share a similar profile design, however once installed two distinct cladding products are provided.

The variations in shingle style, size and finish gives an infinite amount of options available to the specifier.

The thickness varies with material but generally ranges from 0.5mm to 1.0mm. Shingle and Flatlock Metal Cladding is normally installed to a ventilated plywood substrate, however other substrates can be considered.

A standard range of details are available, along with technical assistance on a project by project basis.


DOWNLOAD SHINGLE DATA SHEET


General Requirements

•   Consist of continuous wall studs or Top hats at max 600m spacing.
•   Plywood 17mm structural to as 2269.
•   Fully breathable / waterproofed membrane.
•   Fix flat lock clips at max. 300mm centres. Clips to be same material as panels.


Shingle and Flatlock Metal Cladding Profile

flatlock cladding ACS - Shingle and Flatlock Metal Cladding
Shingle and Flatlock Profile – Not To Scale

Extensive material suitability. Shingle and Flatlock Metal Cladding can be folded in Aluminium, Brass, Copper, Galvanised Steel, Stainless Steel, Steel, Zinc and Weathering Steel.

Both metal cladding products are commonly specified when slim walls are needed.

DOWNLOAD SHINGLE DATA SHEET
